연구장비 상세보기

장비기본정보

기관명
강원대학교 삼척공동실험실습관
장비명

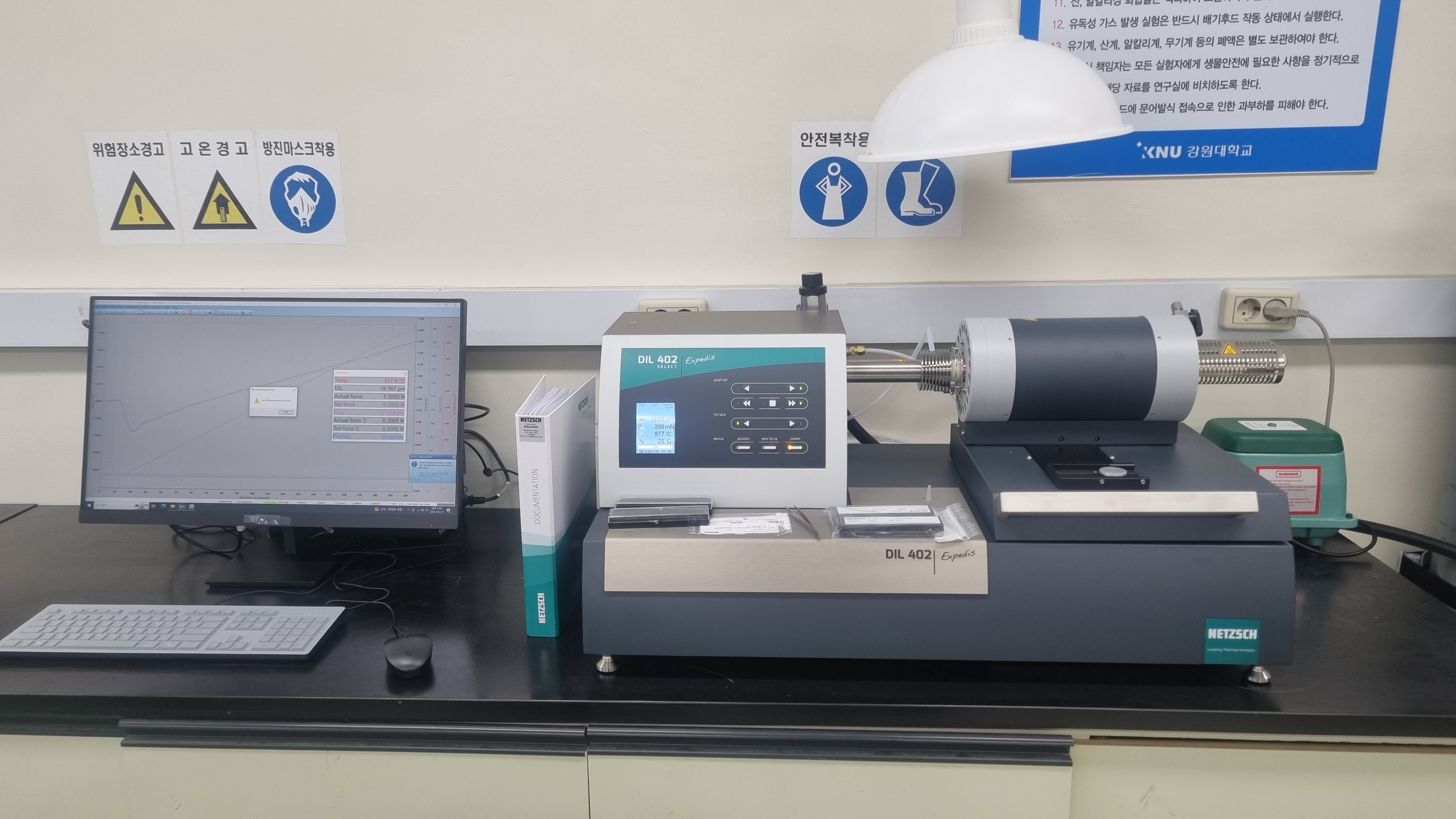

열팽창계수측정기 (Dilatometer)
모델명
DIL402 Expedis Sele
제작사(국가)
Netzsch(Germany)
제작년도
2024
용도
분석
분류
분석장비
취득일
2024.09.27
장비설명
- 반도체, 디스플레이, 나노 융합기술, 신소재, 기계부품, 생명과학, 고분자 등 다양한 분야의 CTE(열팽창계수), Softening point(연화점),

Tg(유리전이온도), 및 길이 변화 측정을 통해 다양한 재료의 물성 및 가공성 변화를 예측이 가능함.
- 응용 과학 분야의 연구 개발, 고온재료 연구 등 공정 개선 및 품질 관리향상에 도움이 됨.
- 재료, 물리, 화학, 금속 등의 모든 기초 과학 및 응용 연구 분야에 활용
장비구성

성능
Dilatometer Measuring parts
1) Maximum Temperature range : ambient to 1650°C
2) Heating/Cooling rate : 0.001 … 50K/min
3) Measuring range :  10000 µm
4) Measuring resolution : 1nm over the entire measurement
5) Displacement : Optical electrical displacement with actuator, force sensor and optical encoder
6) Sample holder : Single or dual, Differential support 7) Sample length : 0 … 52mm
8) Sample length detection : Automatic
9) Precision sample length detection : 0.01mm 10) Sample diameter : Max Ø 19mm11) Heating element : HT-SiC
12) Sample holder : Al2O3
13) Thermocouple type : Type S
14) Furnace type : Horizontal type
15) Furnace operation : Motorized open and closing system
16) Temperature accuracy : 1°C
17) Temperature pricesion : 0.1°C
18) Temperature resolution : 0.001°C
19) Temperature stability(Isothermal) :  0.02°C
20) Repeatability of coefficient of thermal expansion : 0.001%
21) Accuracy of coefficient of thermal expansion : 0.002%
22) Force range : 10mN … 3N
23) Force change mode : Constant, Ramp
24) Force resolution : 0.001mN
25) Noise of dl signal : 1.25nm
26) Peak-to-peak of dl signal : 5nm
27) Drift of dl signal : 20nm/h
28) Gas atmospheres : Inert, Oxidizing, Reducing, Vacuum
29) Gas control : Intergrated mass flow control(MFC)
30) Exchangable spare parts of existing equipment : Protective tube, sample support, standard samples, spacer, slide of DIL402C
31) Exchangable sample holder for single or dual sample measurements
32) Sample loading : soft touch or multi touch support for optimized sample position
33) One single push rod independent of sample length
34) Calculated DTA measurement
35) Softening point detection
36) Density determination
37) Rate controlled sintering
38) Identify with library database
39) Insulated and isothermal sample compartment : Heating foil system without external chiller
NTIS NO
E-Tube NO

장비이용안내

사용방법
기관의뢰
사용료유형
시료당
이용료
48,000원
설치형태
고정
설치장소
삼척공동실험실습관 212호
장비상태
정상
담당자
김양구
연락처
0335706790
팩스
0335706789
사용방법
온라인
